Bond

Smooth flowing curves for a timeless appeal

Textured

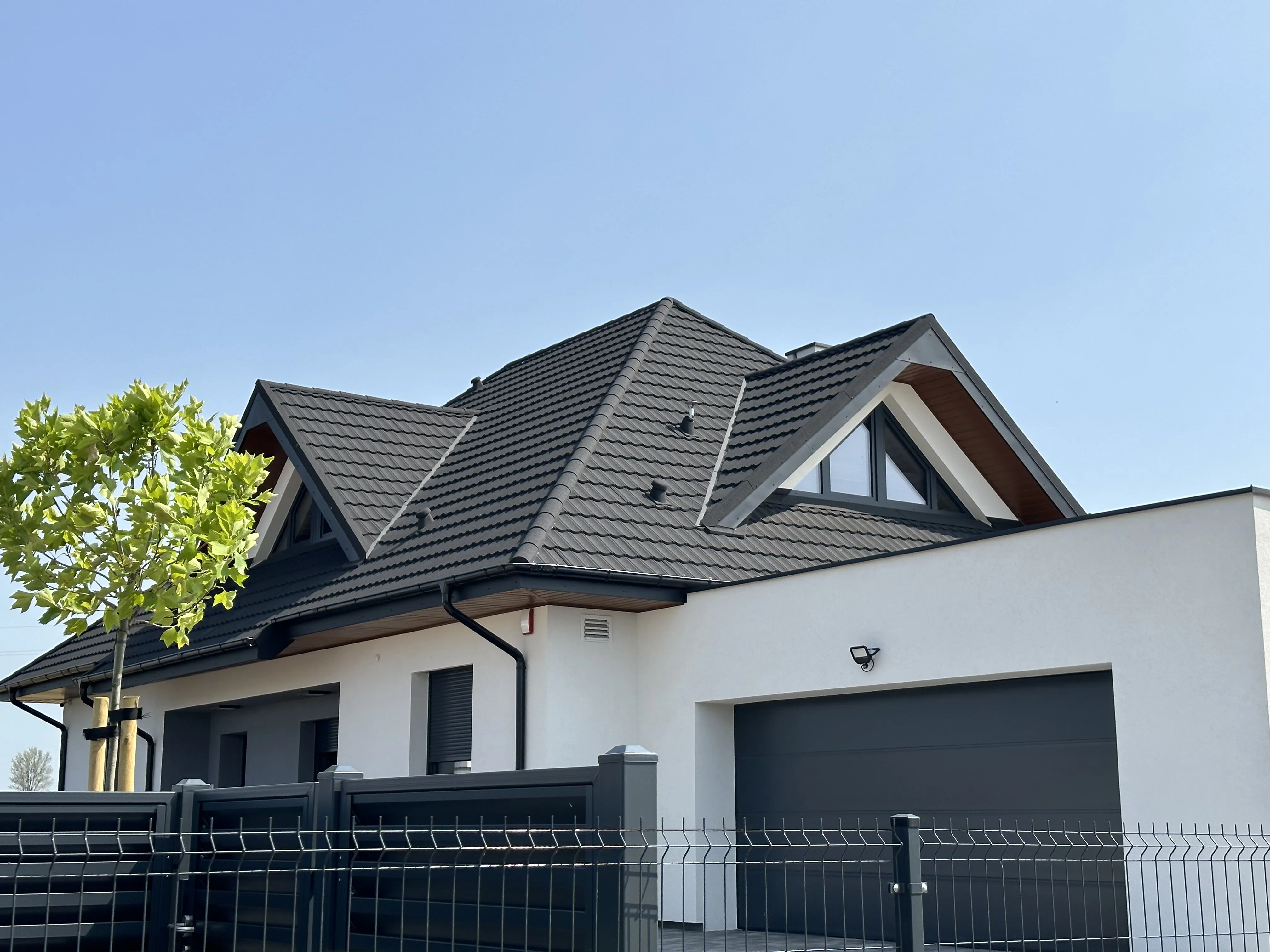

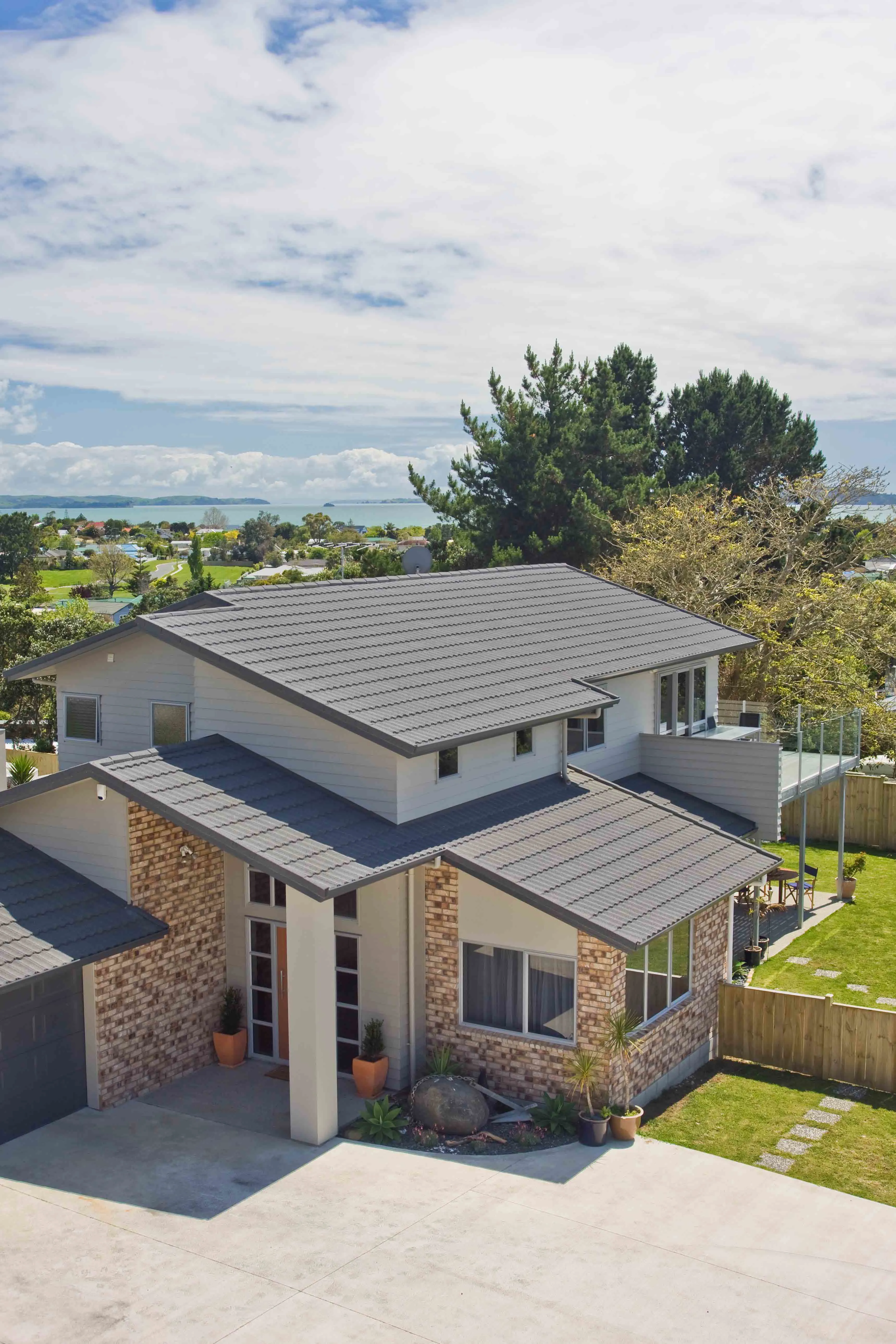

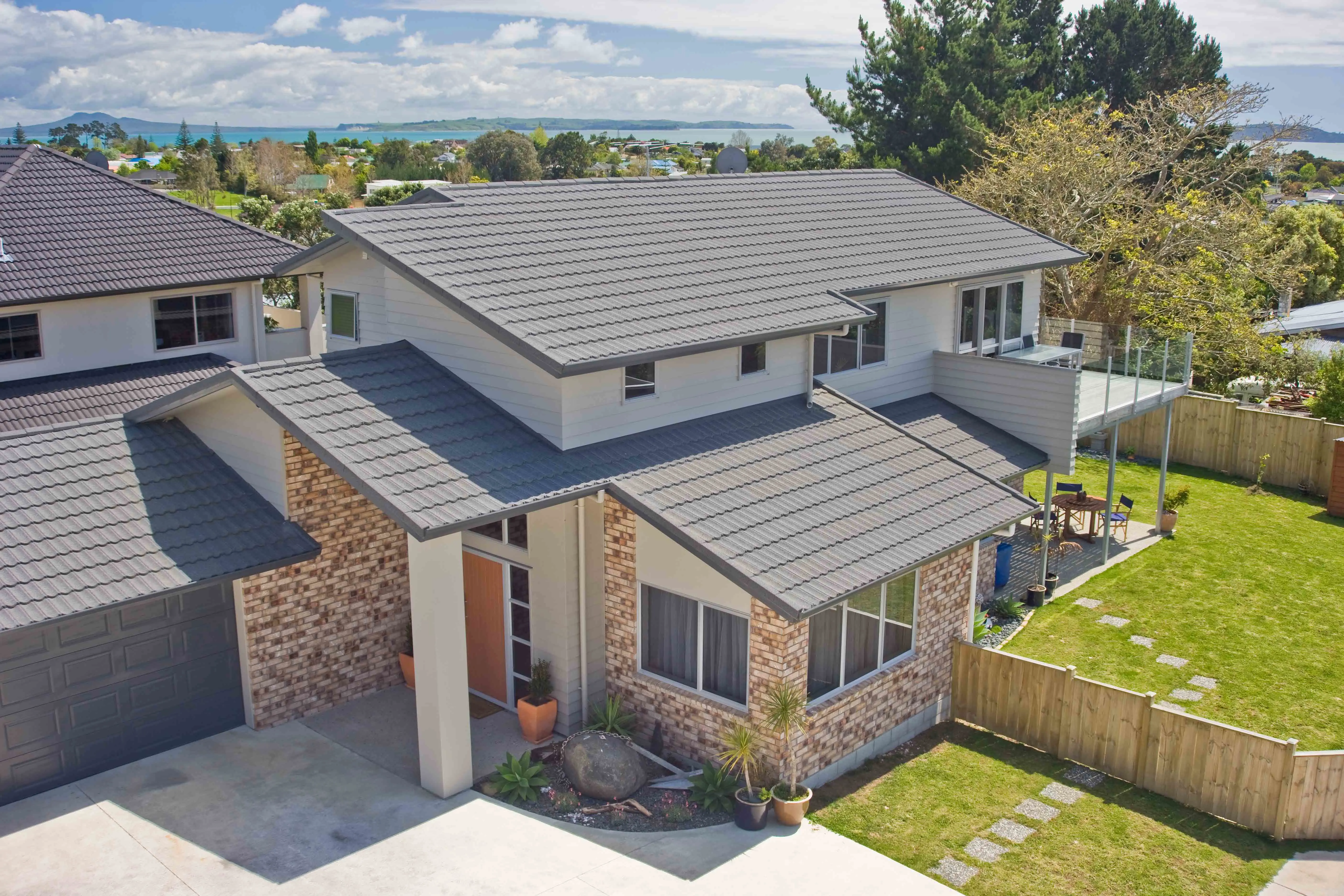

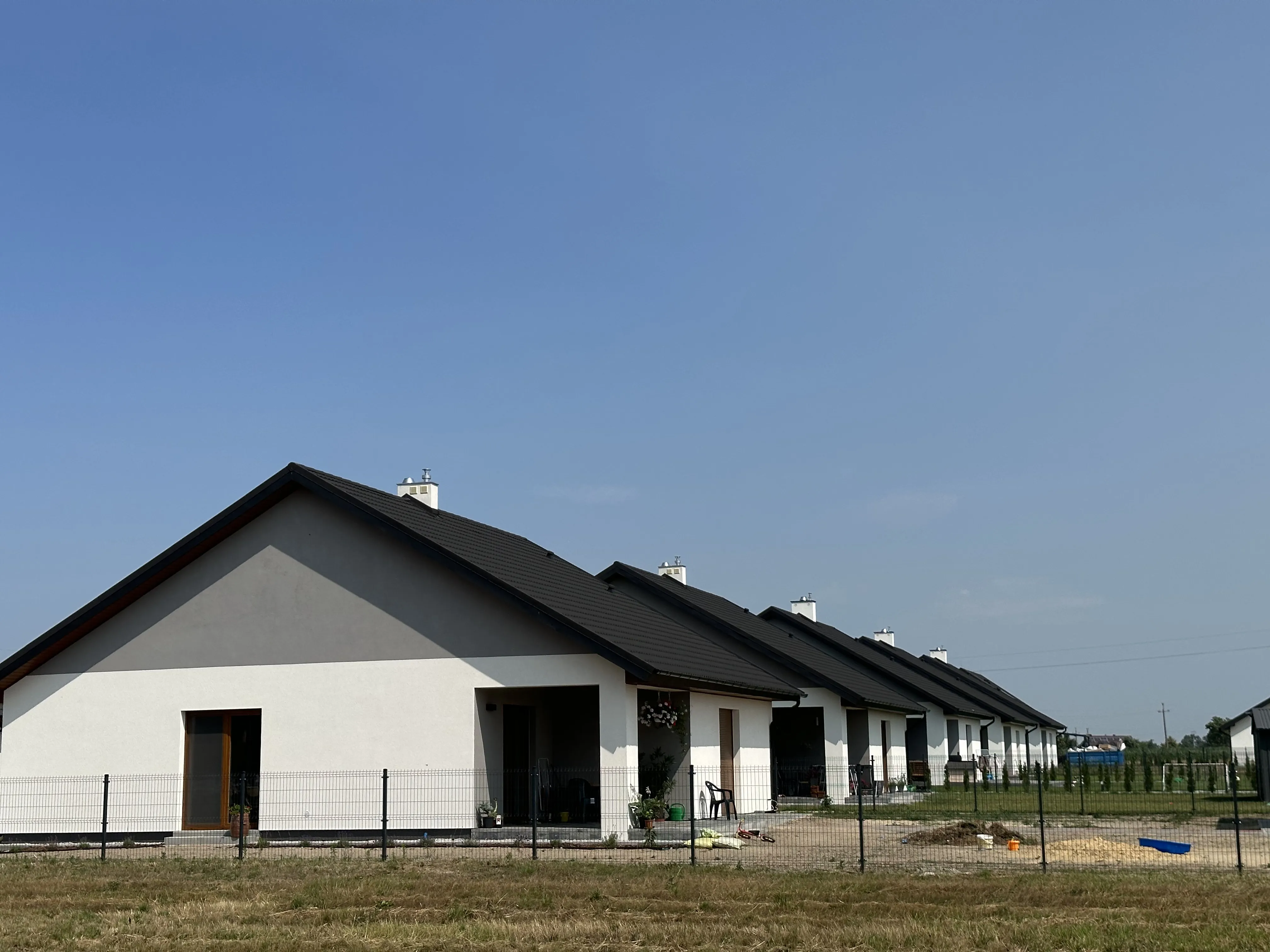

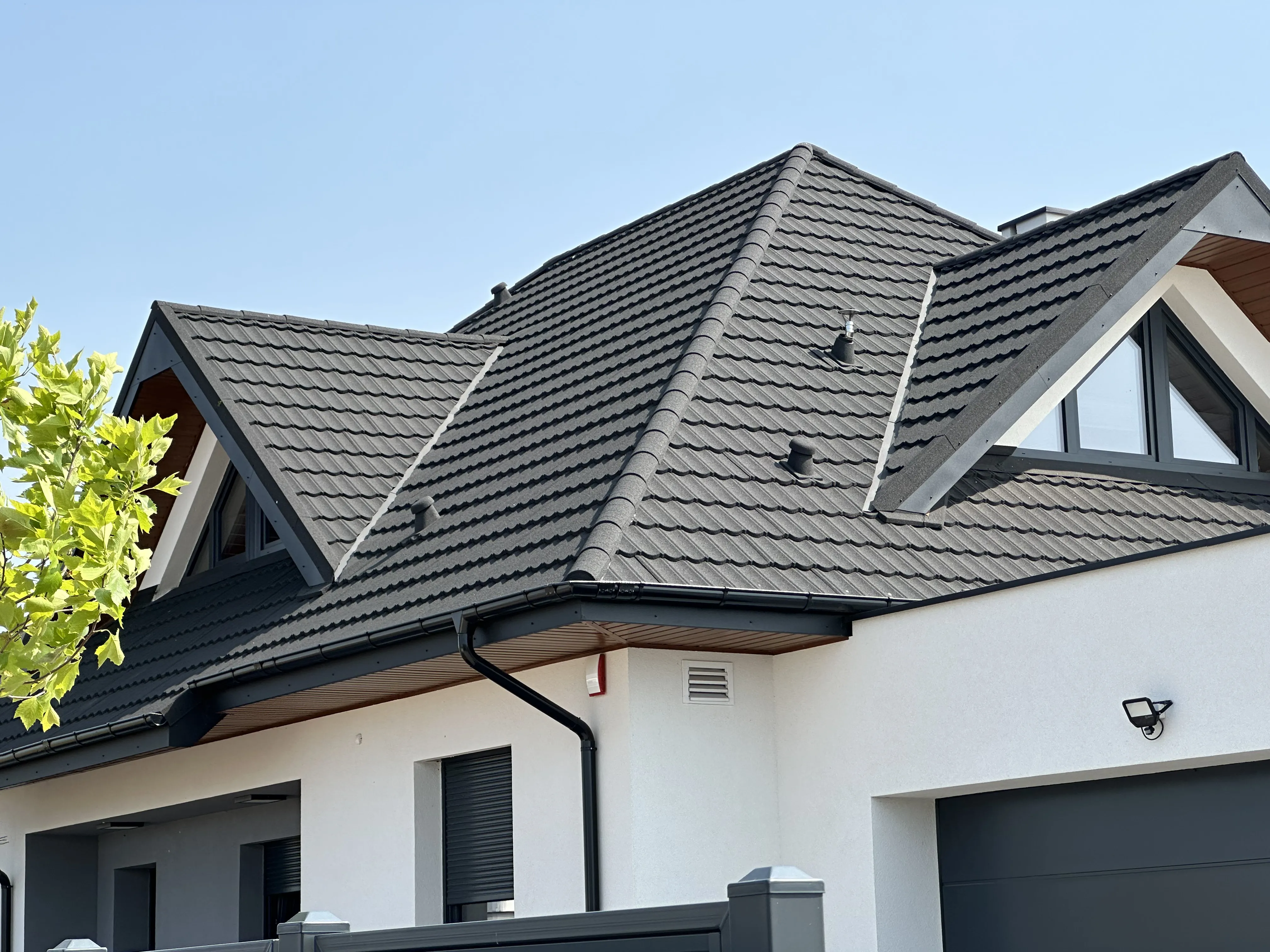

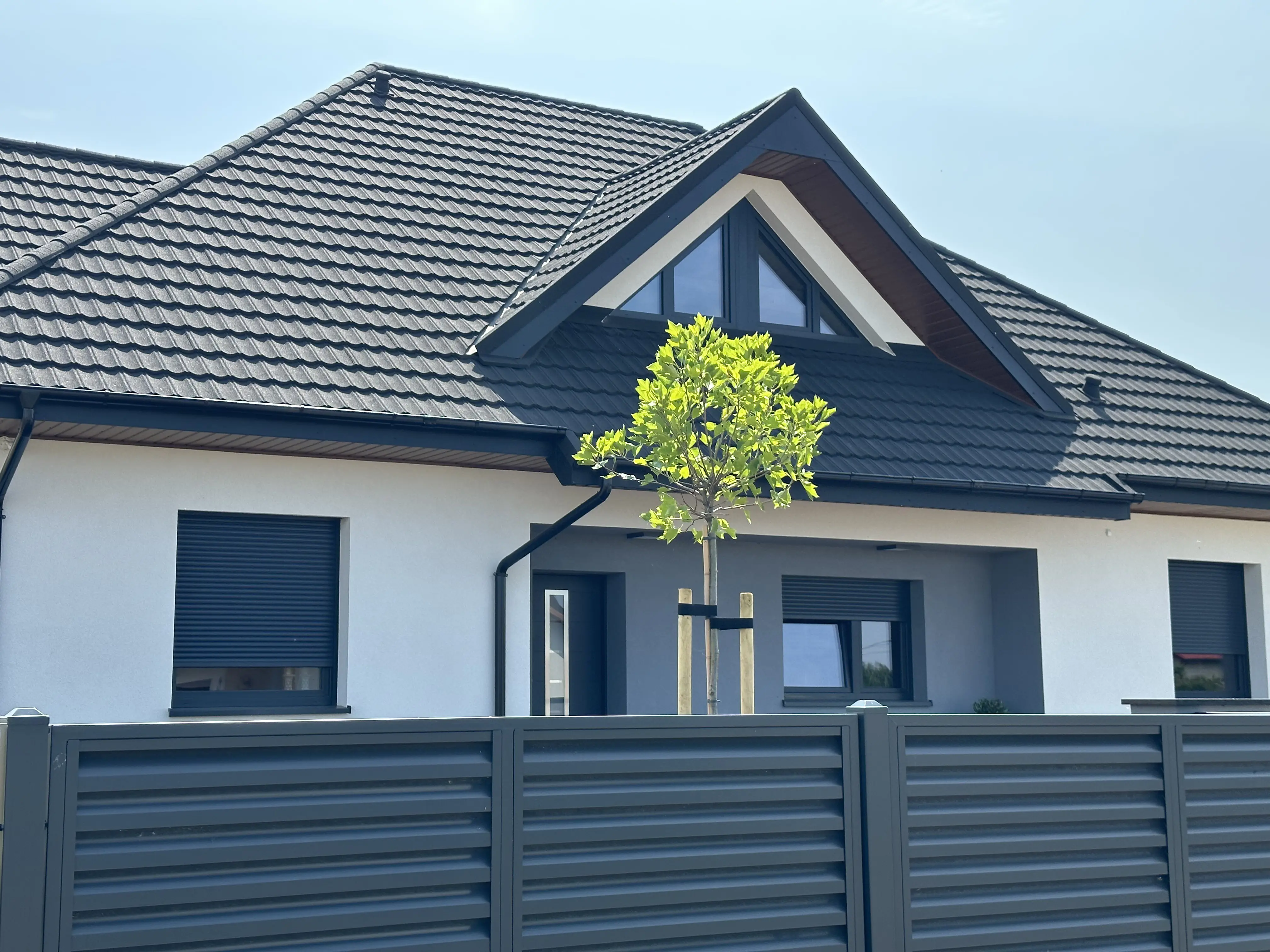

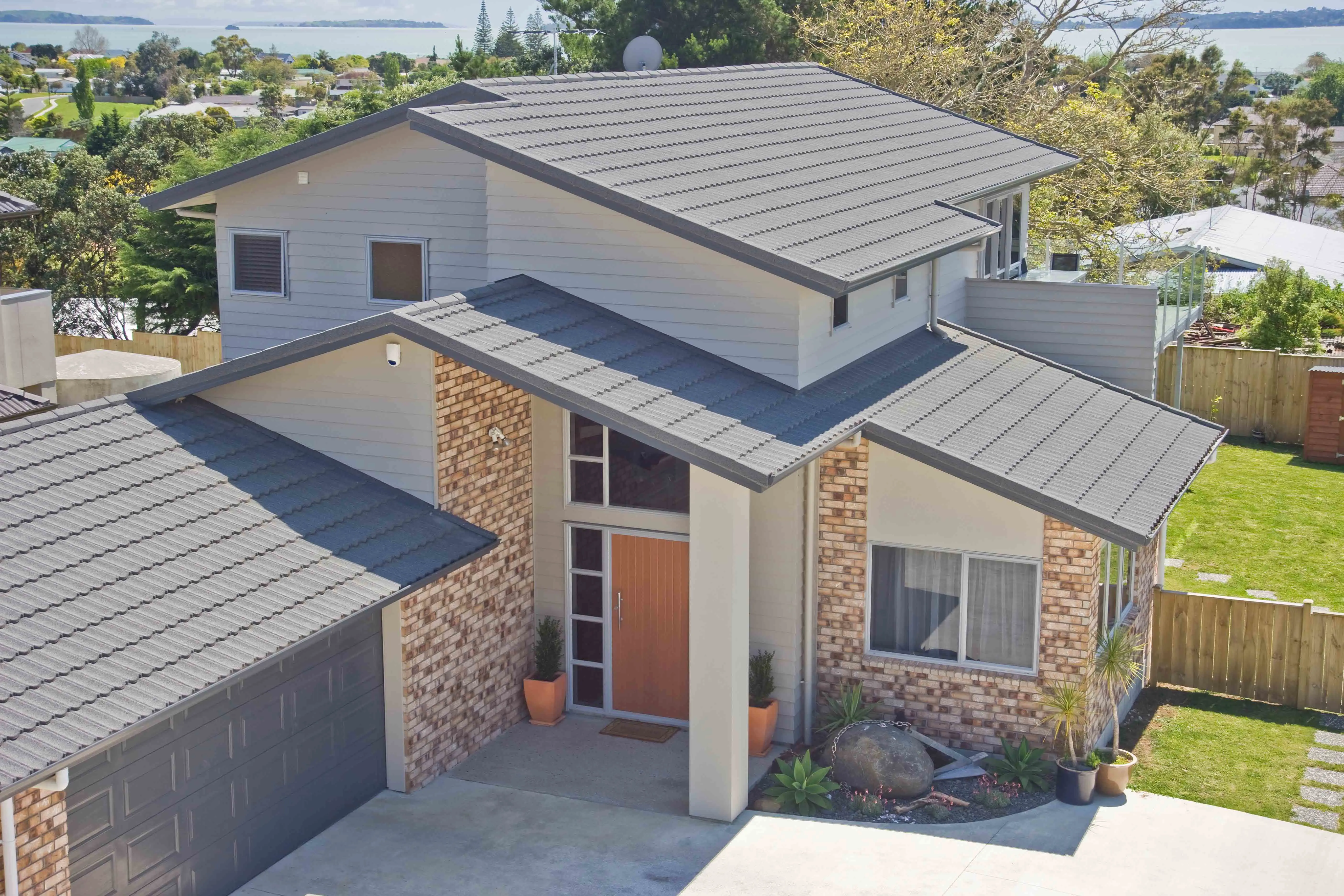

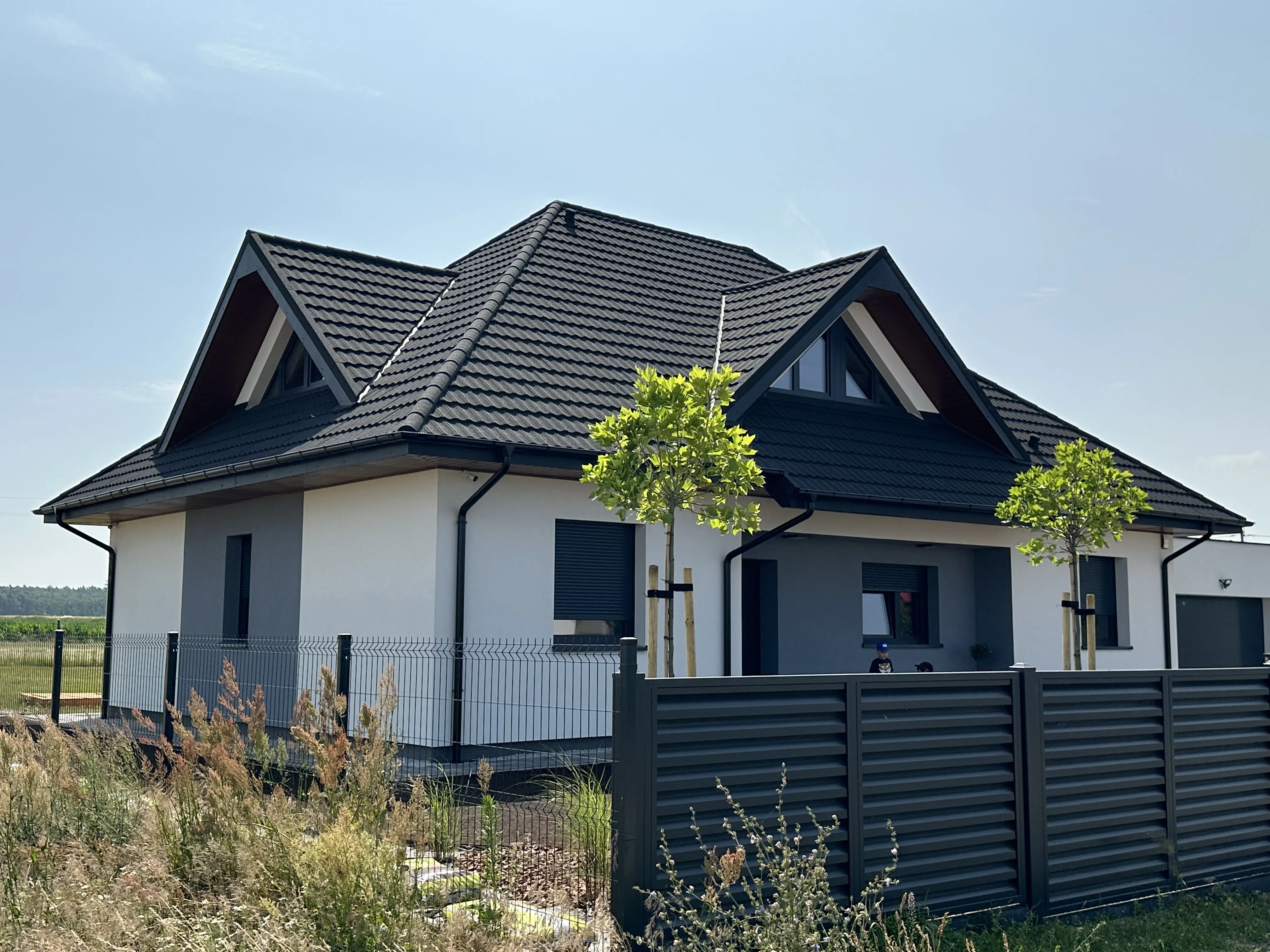

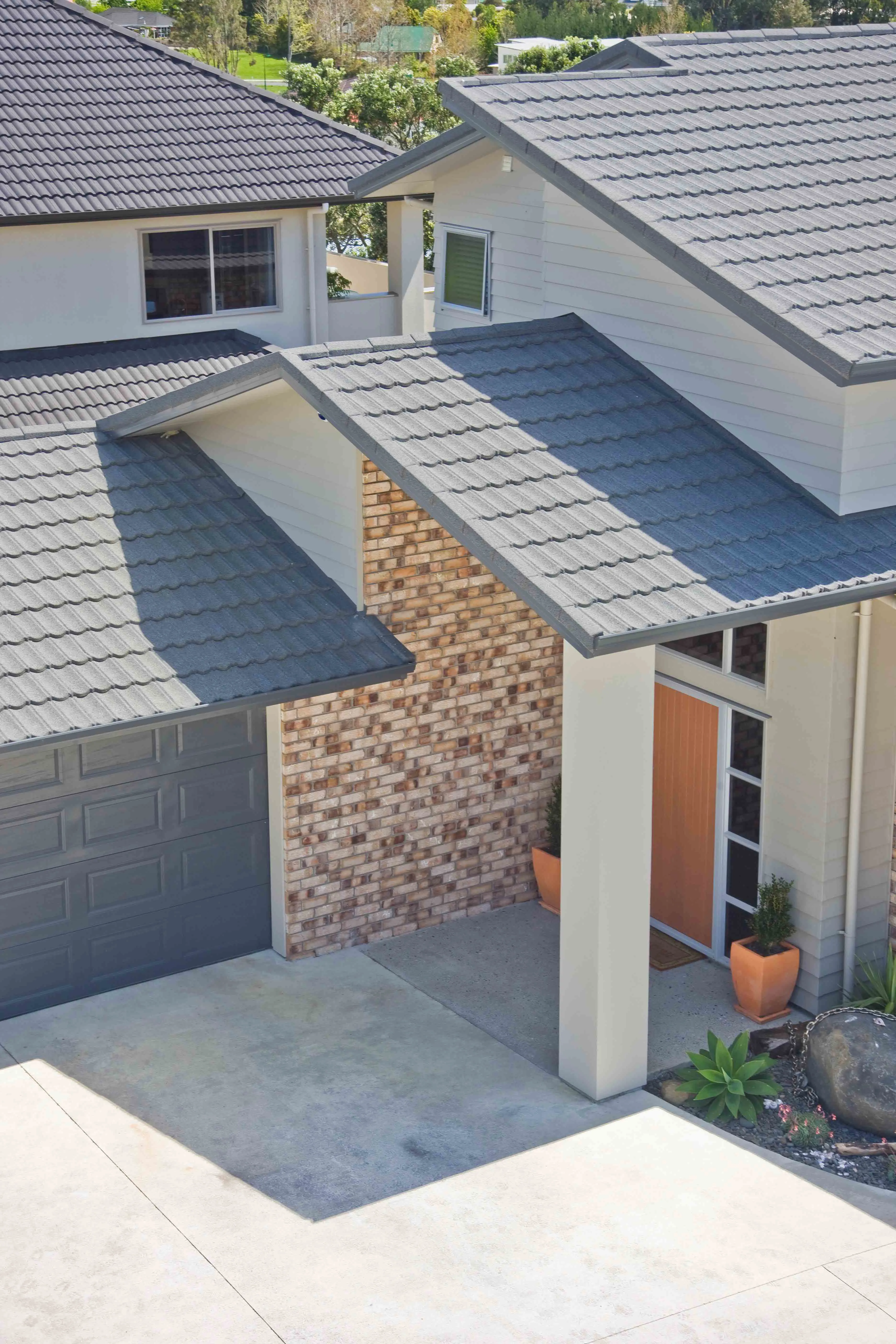

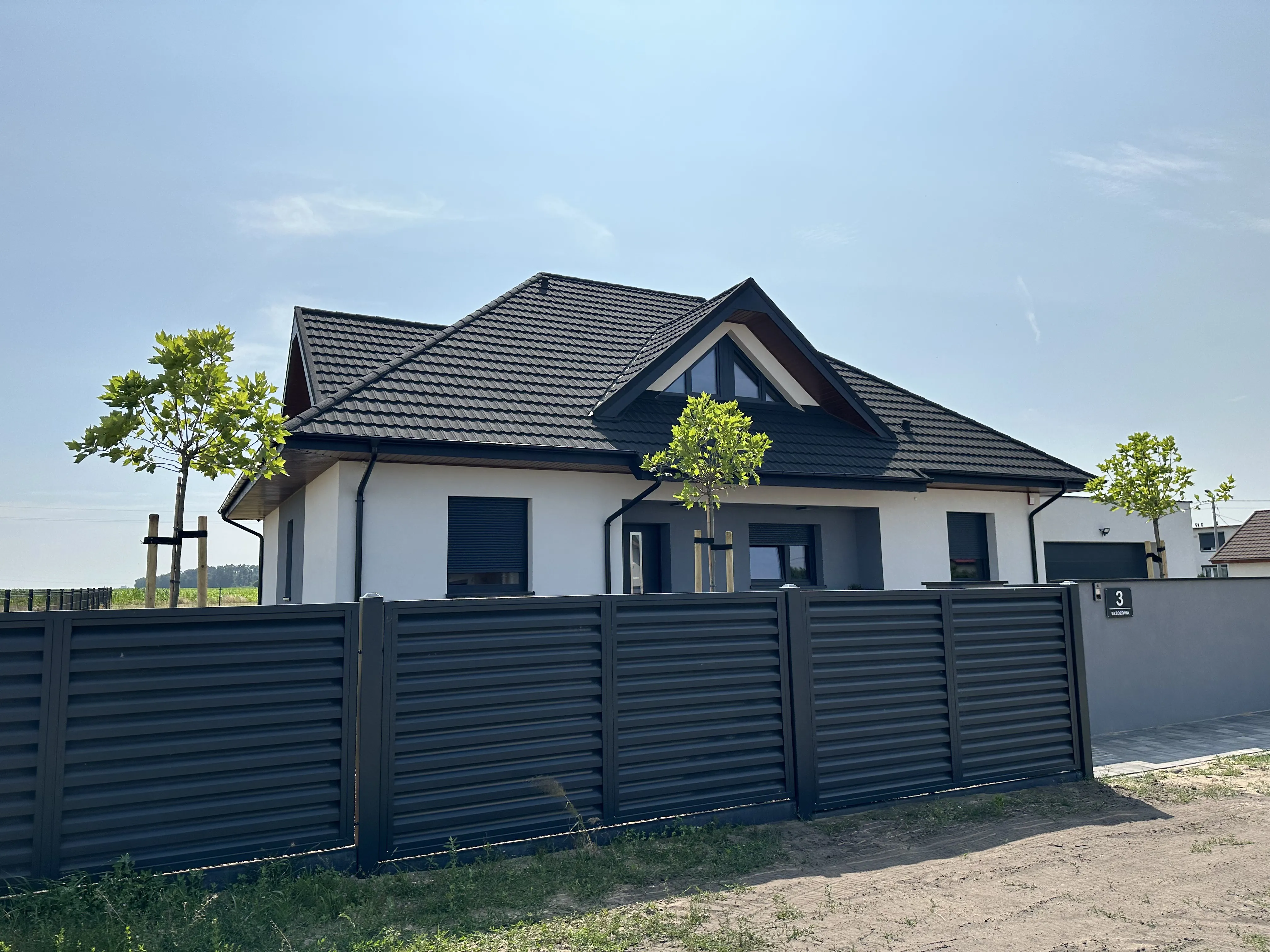

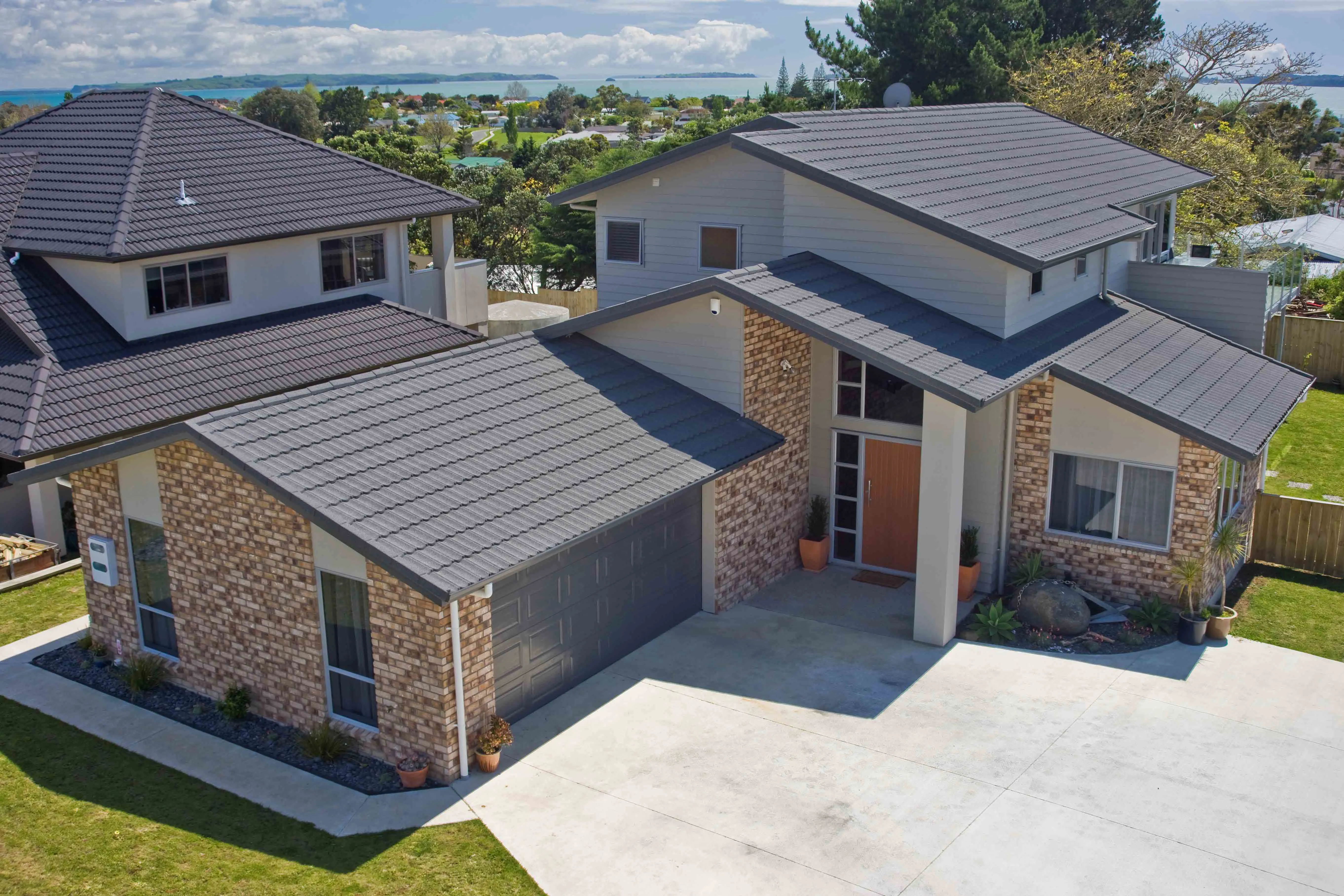

  • Charcoal
  • Brown Bark
  • Coffee Brown

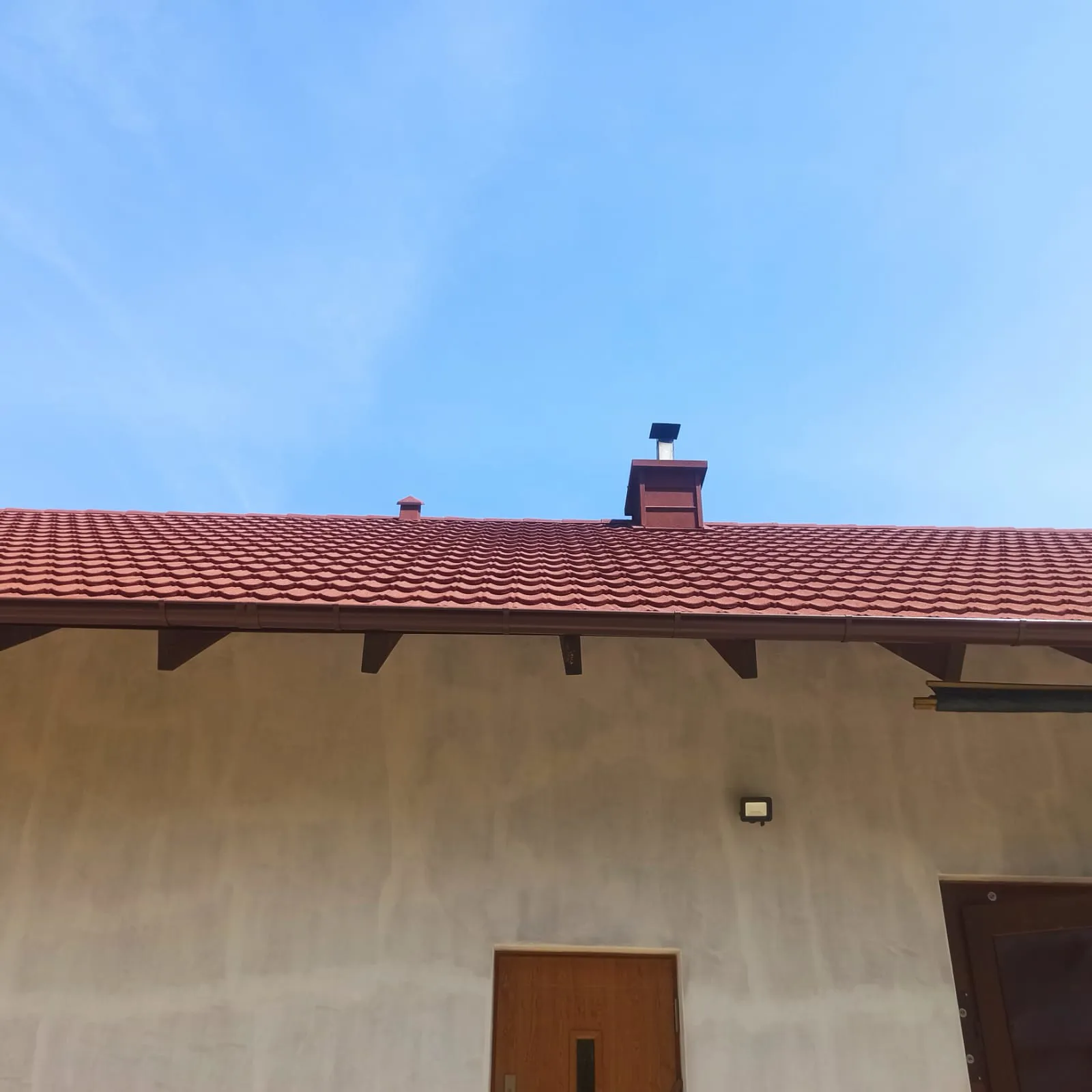

  • Terracotta
  • Autumn

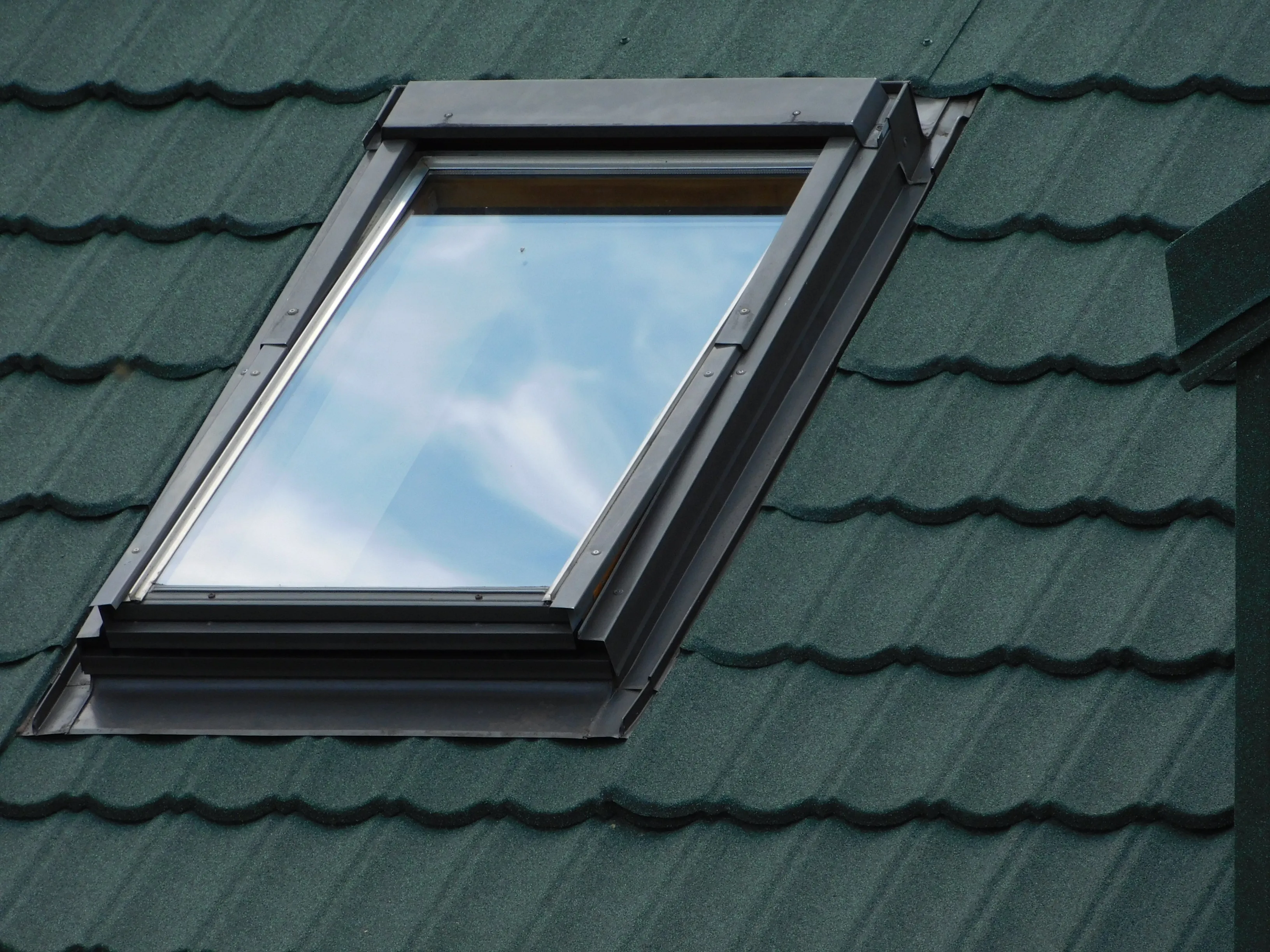

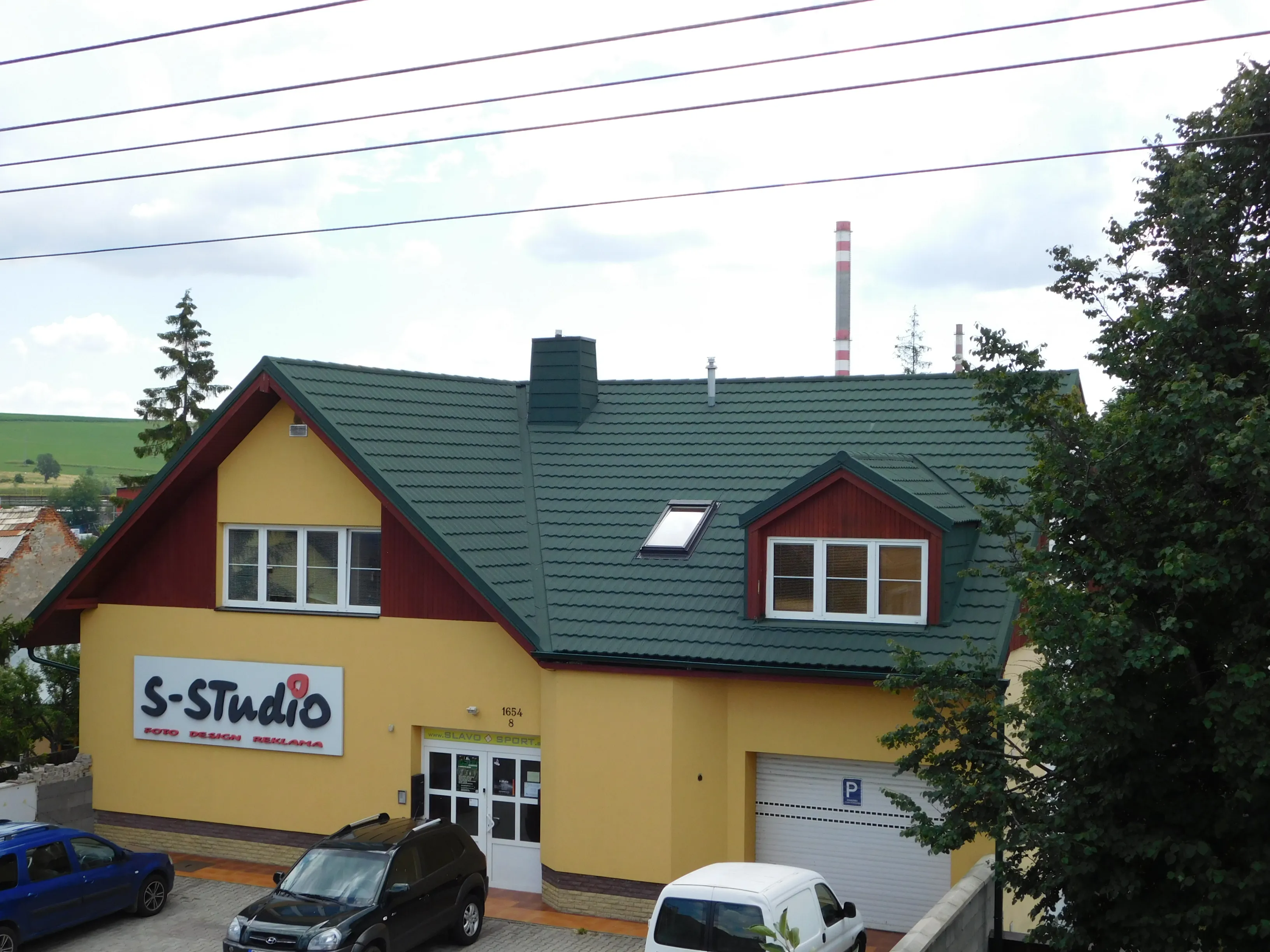

  • Green

Product Specifications

Overall Length
1330 mm
Length of cover
1270 mm
Width of cover
371 mm
Roof cover /Tile
0.469 m2
Tiles /m2
2.13
Weight /Tile
3.01 kg
Weight /m2
6.41 kg
Minimum roof pitch
12 degrees

Technical documents

  • Bond Brochure
    • pdf
  • Bond Technical Data Sheet
    • pdf
  • Tilcor Bond - Eave Apron
  • Tilcor Bond - Box Barge Cover
  • Tilcor Bond - Basic Principle L
  • CAD Files View all documents

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
